Needs analysis
The application area and monitoring conditions are evaluated at the beginning of the project.
Professional LED display solutions
Project-specific LED display systems for indoor and outdoor advertising, information, guidance and corporate communication.
- 01
- indoor and outdoor
- 02
- Modular dimensioning
- 03
- Project specific application
PROFESSIONAL DISPLAY
The right screen structure for every project
EmkoLED offers special LED display solutions for indoor and outdoor spaces under the umbrella of EmkoTech. It can be configured according to different usage needs in education, corporate communication, retail, culture-art and public projects.
The viewing distance, ambient light, application area and content type are evaluated together to determine the screen size, pixel pitch and installation structure suitable for the project.
Technical matching
Pixel pitch, brightness, size and mounting structure are selected according to need.
Installation ve destek
Project planning, commissioning and technical support are managed in a single process.
P0.7 - P10Flexible production across a wide pixel pitch and resolution range
Up to 15 yearsSpare parts stock and strong technical service support
SMD · GOB · COBDifferent LED module technologies according to the project
Indoor + outdoorStructure suited to different brightness and IP protection needs
SOLUTION AREAS
Explore indoor and outdoor product lines
Product groups organized by usage area instead of series names allow you to reach the right solution faster.
01 / INDOOR
Indoor LED Screens
Indoor applications requiring high detail and uninterrupted images at close viewing distances.
- Totems
- Immersive Spaces
- Wayfinding Displays
- Retail Displays
- LED Wall
02 / OUTDOOR
Outdoor LED Screens
Visibility solutions developed taking into account daylight, viewing distance and outdoor conditions.
- Totems
- Billboards
- Wayfinding Displays
- Street Furniture
- LED Wall
SOLUTION FINDER
Easily find the LED display you need
Select the environment, intended use and viewing distance. The tool shows you the appropriate product group and the main criteria that need to be evaluated.
1
Usage environment
2
3
Recommended product group
Retail Displays
Suitable for in-store campaign, product promotion and brand communication.
In close viewing scenarios, lower pixel pitch options are considered.
Explore SolutionWHY EMKOLED?
Beyond the screen: manufacturing, service and the right technology choice
EmkoLED addresses the full lifecycle of an LED display—from design to maintenance access, brightness to module technology—according to project conditions.
Clean design, efficient maintenance
Front or rear service access and energy-saving structure deliver maximum efficiency after installation.
Wide viewing angle
Provides high visibility for larger audiences across different installation areas.
Flexible production infrastructure
Offers production capability for different resolution needs across a wide pixel pitch range from P0.7 to P10.
Local manufacturing and service strength
Fast installation, up to 15 years of spare parts stock and strong technical service support for long-term use.
High resolution and brightness
Options aimed at clear, vivid and eye-catching image quality in indoor and outdoor spaces.
Different IP protection levels
Enables the right protection level to be defined in the project according to environmental and weather conditions.
Broad product range
Covers different usage scenarios from shopping malls to school campuses, corporate spaces to public projects.
SMD, GOB and COB expertise
Allows the optimum LED module technology to be selected according to durability, maintenance and image performance needs.
LED TECHNOLOGY
From modular structure to a manageable display system
Thanks to their modular structure, LED displays can be designed in different aspect ratios such as 16:9, 4:3 or 1:1 and in project-specific dimensions. Module series, mounting method and control infrastructure are defined together according to the application area.
In addition to wall mounting, systems can also be applied on suitable flat surfaces; when needed they can be portable, and settings such as operating hours and brightness can be managed by the user.
16:9
4:3
1:1
- 01External controller
Video flow is managed through external control infrastructure suited to the project.
- 02Remote content management
The system architecture allows content to be managed remotely.
- 03Automatic synchronization
Synchronized operation of multiple displays or modular structures can be supported.
- 04Brightness and operating hours
Operating hours, brightness and other core settings can be managed according to the usage scenario.
TECHNOLOGY GUIDE
Three core technical criteria in LED display selection
Three of the most important factors that determine image quality and durability are pixel pitch, IP protection level, and SMD/GOB/COB module technology.
01 / PIXEL PITCH
Pixel pitch: at the center of clarity, viewing distance and cost balance
Pixel pitch is the distance between the centers of two LED pixels on a display, expressed in millimeters with “P”. As pixel spacing decreases, LEDs move closer together and resolution and image clarity increase.
Lower pixel pitch can also increase energy consumption and cost, so selection should not be based only on the lowest P value, but on viewing distance and usage scenario.

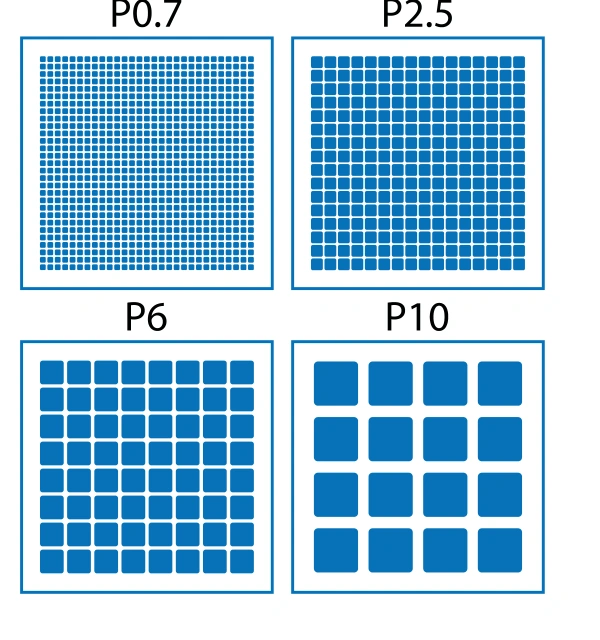

The catalogue visual shows how the distance between LED points increases as pixel pitch grows.
02 / MODULE TECHNOLOGY
What is the difference between SMD, GOB and COB?
All three technologies are used in LED display production, but they offer different advantages in durability, maintenance ease, fine-pitch performance and application area.
Surface Mounted Device
A classic structure where LEDs are mounted directly on the circuit board. It offers wide viewing angle, high brightness and easy maintenance; widely used indoors and outdoors.
Highlights: maintenance ease · brightness · broad useGlue On Board
SMD LEDs are coated with special transparent resin. This structure provides extra protection against impact, moisture and dust; increases surface durability and reduces damage risk during maintenance.
Highlights: surface durability · moisture/dust protectionChip On Board
An advanced structure where LED chips are integrated directly on the board. It offers very high resolution, color homogeneity and heat resistance; especially preferred for fine-pitch indoor displays.
Highlights: fine-pitch · color homogeneity · heat resistance03 / IP PROTECTION
What do the two digits in the IP code mean?
The IP code is the international IEC 60529 standard showing a device's protection level against dust and water. The first digit indicates solid object and dust protection; the second digit indicates water protection.
1st digit0 - 6
Protection against dust and solid objects
2nd digit0 - 8
Protection against water
First digit - Dust / Solid Object
- 0
- No protection
- 1-2
- Protection against large objects
- 3-4
- Protection against tools, wires and smaller objects
- 5
- Limited dust ingress; does not affect operation
- 6
- Dust-tight
Second digit - Water
- 0
- No protection
- 1-3
- Rain and water splashes
- 4
- Protection against splashing water from any direction
- 5
- Low-pressure water jet
- 6
- High-pressure water jet
- 7
- Temporary immersion in water (1 m)
- 8
- Continuous immersion
PROJECT PROCESS
One process from idea to commissioning
- 01
Needs Analysis
The area, intended use and target visibility are determined.
- 02
Discovery and Dimensioning
The mounting surface, dimensions and viewing distance are examined.
- 03
Projelendirme
Screen structure, technical components and installation plan are prepared.
- 04
Installation
The system is assembled and commissioned on site.
- 05
Teknik Destek
Post-use maintenance and support process is managed.
FREQUENTLY ASKED QUESTIONS
The most curious things about LED display projects
Technical values and final product selection are determined according to project conditions.
How are LED screen prices determined?
Total screen area, indoor or outdoor use, pixel pitch, brightness, carrier construction, control system, installation conditions and service scope affect the price. Therefore, pricing is done on a project basis.
For which areas of use are EmkoLED solutions suitable?
In interior retail, corporate lobby, meeting space, museum, experience center and orientation projects; it can be used in outdoor totem, billboard, building facade, street furniture and open space orientation applications.
What is pixel pitch and why is it important?
Pixel pitch is the distance between the centers of LED pixels. As the value decreases, resolution and image clarity increase; however, energy consumption and cost may also rise. Therefore, selection should be made according to viewing distance and usage scenario.
What do the two digits in the IP protection code mean?
The first digit, in the 0-6 range, indicates protection against dust and solid objects; the second digit, in the 0-8 range, indicates protection against water. The required IP level in the project should be determined according to the environmental conditions the display will be exposed to.
Are LED displays suitable for 24/7 operation?
This suitability depends on the technical structure of the selected product, power and heat management and usage scenario. In projects that require uninterrupted use, the technical document and project design of the relevant model should be verified together.
What is the lifespan of LED screens?
The LED component used, brightness setting, ambient temperature, operating time and maintenance conditions affect the lifespan. For the exact value, the technical data sheet of the product to be selected should be taken as basis.
How is energy consumption calculated?
Consumption; Varies based on screen area, content brightness, maximum brightness setting and power infrastructure. Average and maximum consumption values should be calculated separately during the project phase.
How does the installation and technical service process proceed?
The process consists of needs analysis, discovery, project design, proposal, production or supply, installation, commissioning and technical support steps. The scope is clarified according to the project conditions.
LET'S DISCUSS YOUR PROJECT
Let's determine the right LED display solution together
Contact our sales team to evaluate your application area, viewing distance and screen size.
